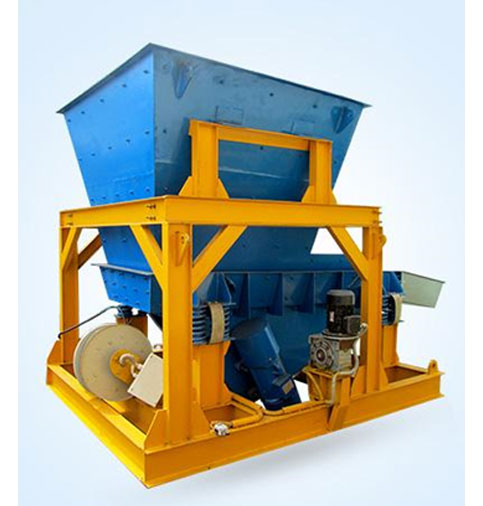

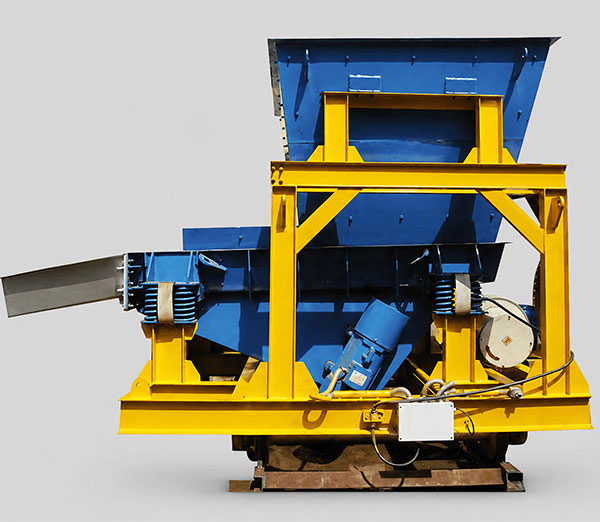

Vibratory Furnace Charger
PRODUCT OVERVIEW
The Vibro Flux vibratory furnace charger is engineered to deliver accurate, vibration-controlled feeding of scrap metal and raw materials into induction furnaces, electric arc furnaces, and other high-temperature melting systems. Designed for demanding foundry and steel manufacturing environments, the equipment ensures a continuous and controlled material flow, helping operators maintain stable melting conditions while improving process efficiency.
Unlike manual or batch charging methods, the system regulates the charging rate to minimise material bridging, reduce furnace splash, and optimise melt cycles. Manufactured using heavy-duty fabricated steel, the furnace charger is suitable for handling scrap metal, pig iron, DRI pellets, and other metallic feedstock. Vibro Flux is among the limited number of specialised Indian manufacturers producing high-performance furnace charging equipment, with successful installations across major foundry hubs including Rajkot, Coimbatore, Kolhapur, Belgaum, and Howrah.
PRODUCT FEATURE
- Vibratory trough design with adjustable feed rate through excitation amplitude control
- Heavy-duty fabricated steel construction for demanding foundry applications
- Water-cooled and heat-shielded trough options for operation near open-mouth furnaces
- Variable Frequency Drive (VFD) for stepless feed rate adjustment
- CE-compliant electrical control panel with emergency stop and safety interlocks
- Compatible with Electrotherm, Inductotherm, and other leading induction furnace platforms
- Batch capacities ranging from 0.5 tonne to 10 tonnes
Key benefits
Working Principle
& Benefits
The vibratory furnace charger uses one or two vibrating motors mounted on a fabricated trough to generate controlled oscillations that move charging materials steadily into the furnace. The feed rate is adjusted through eccentric weight settings and a Variable Frequency Drive (VFD), allowing operators to synchronise material flow with the furnace melting rate for safe and efficient charging.
Ensures controlled and uniform charging of metallic feed materials
Reduces manual handling and labour requirements
Compatible with major induction furnace OEM platforms
Minimises furnace splash and improves operator
safety
Optimises melt cycles for improved furnace productivity
Heavy-duty construction ensures reliable, long-term industrial performance
Why choose us
ENGINEERED FOR CONTROL BUILT FOR FOUNDRY PERFORMANCE.
01
PROVEN FURNACE INTEGRATION EXPERTISE
Vibro Flux has extensive experience integrating charging systems with major Indian induction furnace OEM platforms, including Electrotherm and Inductotherm. Every system is configured to match the mechanical layout and operational requirements of the furnace installation.
02
PRECISION CONTROLLED MATERIAL FEEDING
The vibration-driven charging mechanism delivers a stable and adjustable material flow that helps reduce furnace splash, minimise thermal shock, and improve melting consistency throughout production.
03
HEAVY-DUTY INDUSTRIAL CONSTRUCTION
Every machine is manufactured using robust fabricated steel with optional heat protection systems, ensuring dependable operation in high-temperature foundry environments while reducing maintenance requirements.
04
CUSTOM ENGINEERED SOLUTIONS
Each charging system is designed according to the customer’s furnace capacity, material characteristics, batch size, and plant layout to deliver reliable long-term performance and efficient charging operations.
Looking for a Custom Furnace Charger?
Frequently Asked Questions
Get expert guidance on selecting a furnace charging machine.
What materials can the Vibro Flux vibratory furnace charger handle?
The system is designed to process ferrous scrap, pig iron, DRI pellets, cast iron returns, aluminium scrap, copper ingots, brass, and other metallic charging materials. The trough design and vibration settings are customised according to the material’s bulk density and flow characteristics.
Is the equipment compatible with Electrotherm and Inductotherm furnaces?
Yes. Vibro Flux systems are engineered to integrate with Electrotherm, Inductotherm, and other major induction furnace manufacturers. Customers can provide their furnace specifications during the enquiry stage for configuration verification.
How does a vibratory furnace charger differ from a scrap basket charging system?
A vibratory charging system delivers material continuously through controlled vibration, whereas scrap baskets discharge material in large batches. Controlled feeding reduces furnace splash, minimises thermal shock to the refractory lining, improves process stability, and provides better control over the melting cycle.
